Map¶

This file is responsible for the TRSMap positioning system. It was made from scratch by Torwent but heavily inspired in the original TRSWalker by slacky and it’s future iterations made by Olly. Without them, this wouldn’t be possible.

For a online interactive map you can visit WaspScripts map

For something simpler and much closer to the original slacky walker check out Image Map.

For debugging purposes you can use {$DEFINE WL_DEBUG_MAP} before including WaspLib.

TRSPosition¶

Record holding a player’s full position:

X, Y coordinate
Z which is the player height on the current heightmap
Plane which is the player’s current plane if several planes are being used.

TRSMap¶

Record responsible for positioning.

Map.AddLocalFilter¶

procedure TRSMap.AddLocalFilter(filter: TBox; inside: Boolean);

Adds a position filter to the TRSMap.

This is a way to making it impossible for you to get positions inside of the filter boxes your TRSMap has.

It’s useful to understand the different between local and global coordinates to know if you should use this or Map.AddGlobalFilter instead.

Map.AddGlobalFilter¶

procedure TRSMap.AddGlobalFilter(regionIdx: Int32; filter: TBox; inside: Boolean);

Adds a position filter to the TRSMap.

This is a way to making it impossible for you to get positions inside of the filter boxes your TRSMap has.

It’s useful to understand the different between local and global coordinates to know if you should use this or Map.AddLocalFilter instead.

Map.InternalSetup¶

procedure TRSMap.InternalSetup();

Internal TRSMap setup method. This is caleld automatically for you and you shouldn’t need to call it.

Map.Setup¶

procedure TRSMap.SetupEx(boxes: TBoxArray; planes: TIntegerArray = [0]; downscale: UInt32 = 8);
procedure TRSMap.Setup(chunks: TRSMapChunkArray; downscale: UInt32 = 8);
procedure TRSMap.Setup(echunks: set of ERSChunk; downscale: UInt32 = 8); overload;

Sets up a TRSMap.

Map.Add¶

procedure TRSMap.AddEx(boxes: TBoxArray; planes: TIntegerArray = [0]; downscale: UInt32 = 8);
procedure TRSMap.Add(chunks: TRSMapChunkArray; downscale: UInt32 = 8);
procedure TRSMap.Add(echunks: set of ERSChunk; downscale: UInt32 = 8); overload;

TRSMap to add maps to an already setup TRSMap.

Map.ScaledSearch¶

function TRSMap.ScaledSearch(img: TImage): TPointArray;

Internal TRSMap method used to get an initial TPointArray of possible positions. This is performed in a downscaled map with a downscaled minimap. This is very innacurate by itself but by ruling down most of the map in a downscaled search before doing a full sized search speed has a dramatic boost. You probably won’t ever need to call this directly.

Map.Position¶

function TRSMap.Position(): TPoint;
function TRSMap.FullPosition(): TRSPosition;

Returns the players current position on the loaded map. TRSMap.FullPosition() also returns the current Z level.

Example:

WriteLn(Map.Position());
WriteLn(Map.Similarity); // Check to see the match percentage if needed

Map.Height¶

function TRSMap.Height(pt: TPoint; global: Boolean = True): Single;

Returns the height of the player at the specified coordinate if there’s a heightmap loaded. If pt is [0,0], which is the default then we will use our current position. global decides wether the coordinate is converted to Global Points or if it’s meant to be used as internal Local Points.

Example:

WriteLn Map.Height();

Map.DebugPosition¶

function TRSMap.DebugPosition(): TPoint;

Debugs the player position in the currently loaded map.

Example:

Map.Setup(...);
while True do
  Map.DebugPosition();

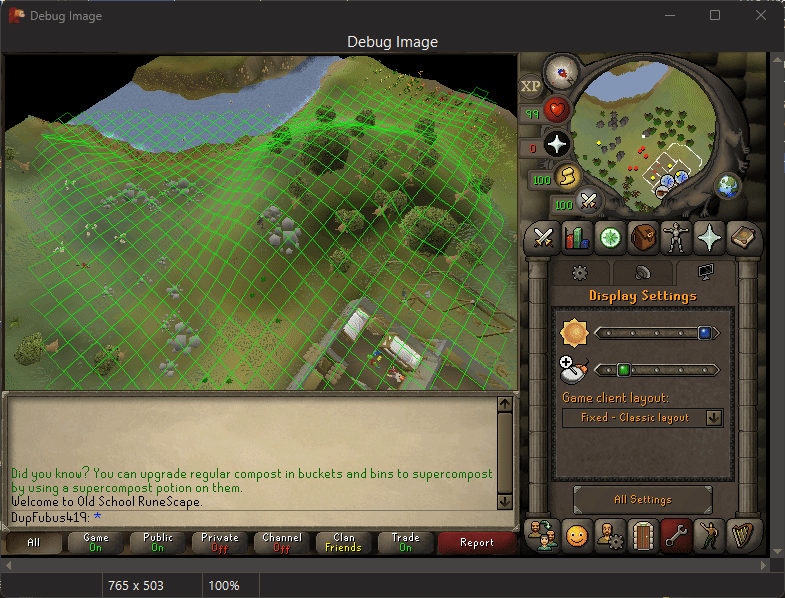

Map.DebugHeight¶

procedure TRSMap.DebugHeight(img: TImage; dots: ERSMinimapDots);
procedure TRSMap.DebugHeight(dots: ERSMinimapDots = [ERSMinimapDot.PLAYER..ERSMinimapDot.ITEM]); overload;

Debugs the heightmap with MM2MS.

Example:

{$I WaspLib/osrs.simba}
begin
  Map.Setup([ERSChunk.VARROCK]);
  while True do
  begin
    Options.GetZoomLevel(False);
    Map.DebugHeight();
  end;
end.

Map variable¶

Global TRSMap variable.
