ItemInterface¶
Methods to interact item interfaces.
“Item interfaces” in WaspLib refers to any interface that is an item container.
In other words, if an interface has holds items, it’s both a SlotInterface and ItemInterface.
Examples of “item containers” are:
Just because an interface is an “item container”, does not mean it uses
ItemInterface, but all the examples above do and you can access it through their
Items variable, for example:
Inventory.Items;
Equipment.Items;
Bank.Items;
Note
Throughout this page examples, Inventory will be used in most of them but any interface that has a TItemInterface variable can used instead.
Lastly, TItemInterface uses ItemFinder underneath and there’s 2 main types of
methods:
TItemInterface¶
Main record to handle a ItemInterface.
Note
Throughout this page Items will always refer to a TItemInterface variable
unless specified otherwise.
Items.Setup¶
procedure TItemInterface.Setup(name: String; slots: ^TSlotInterface; discoverOffset: TPoint; checkFunc: function (): Boolean of object = nil);
Setup method of the ItemInterface.
All interfaces included in WaspLib that use a ItemInterface already call this automatically for you.
Unless you create your own, you don’t need to use it.
To setup a TItemInterface, your interface also needs a
TSlotInterface and you need to pass a pointer to it through this.
checkFunc should a function to check if the interface is open.
This is optional but recommended as it will avoid your scripts do actions by
accident if the interface is not open in the first place for some reason.
For example, this is how Inventory and Bank setup their
TItemInterface:
//Inventory:
Inventory.Slots.Setup('Inventory.Slots', TBoxArray.Create(GameTab.TopLeft.Offset(13,9), 4, 7, 31, 31, [11, 5]));
Inventory.Items.Setup('Inventory.Items', @Inventory.Slots, [0, 0], @Inventory.Open);
//Bank:
Bank.Slots.Setup('Bank.Slots', Bank.SlotBoxes, @Bank.FindItemBoundaries);
Bank.Items.Setup('Bank.Items', @Bank.Slots, [0, 1], @Bank.IsOpen);
Item finding methods¶
The following methods are what we call “Finding” methods.
They work by loading up an image(s) of the item(s) you want to find and go over each slot the interface has, screenshotting each slot and comparing the images to deduce whether what’s on the slot matches what you are looking for.
This is very reliable, the only caveat is that you need to know the item you want in advance which is not possible in some situations, in that case you will need one of the Item recognize methods.
Items.IndexOf¶
function TItemInterface.IndexOf(items: TItemArray): Integer;
Returns the index of the first item found in items.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.IndexOf(['abyssal whip', 'dragon scimitar']);
end.
Items.IndicesOf¶
function TItemInterface.IndicesOf(items: TItemArray): TIntegerArray;
Returns all the indices of the items found in the TItemInterface.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.IndicesOf(['abyssal whip', 'dragon scimitar']);
end.
Items.FindAny¶
function TItemInterface.FindAny(items: TItemArray; out slot: TBox): Boolean;
Returns a True/False if any item in items was found and returns it’s TBox
through slot.
Example:
{$I WaspLib/main.simba}
var
bounds: TBox;
begin
if Inventory.Items.FindAny(['abyssal whip', 'cake'], bounds) then
ShowOnTarget(bounds);
end.
Items.Find¶
function TItemInterface.Find(item: TItem; out slot: TBox): Boolean;
function TItemInterface.Find(items: TItemArray; out slot: Integer): Boolean; overload;
function TItemInterface.Find(item: TItem; out slot: Integer): Boolean; overload;
Returns a True/False if the specified item or items were found and returns
their TBox or slot index through slot.

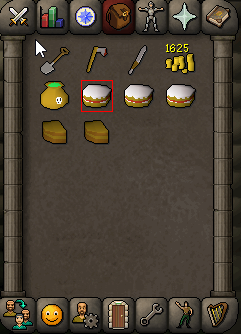

Example:
{$I WaspLib/main.simba}
var
bounds: TBox;
begin
if Inventory.Items.Find('cake', bounds) then
ShowOnTarget(bounds);
end.
Items.FindAll¶
function TItemInterface.FindAll(items: TItemArray): TBoxArray;
function TItemInterface.FindAll(items: TItemArray; out slots: TIntegerArray): Boolean; overload;
function TItemInterface.FindAll(items: TItemArray; out boxes: TBoxArray): Boolean; overload;
This function has several signatures, so depending on which one you use the parameters and/or results will vary but it all should be self explanatory.
You can use this to know if all the specified items are visible in the
ItemInterface and/or return their bounds as a TBoxArray.

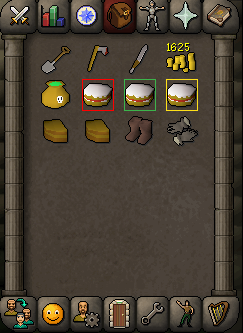

Example:
{$I WaspLib/main.simba}
var
boxes: TBoxArray;
begin
boxes := Inventory.Items.FindAll(['abyssal whip', 'cake']);
ShowOnTarget(boxes);
end.
Items.Contains¶
function TItemInterface.Contains(item: TItem): Boolean;
Returns True/False if the specified item is visible in the interface.
Keep in mind for interfaces that can “contain” the item but it’s currently not visible like the Bank for example, this will return false.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.Contains('abyssal whip');
end.
Items.ContainsAny¶
function TItemInterface.ContainsAny(items: TItemArray): Boolean;
Returns True/False if any of the specified items is visible in the interface.
Keep in mind for interfaces that can “contain” an item but it’s currently not visible like the Bank for example, this will not make this return true.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.ContainsAny(['abyssal whip', 'cake']);
end.
Items.ContainsAll¶
function TItemInterface.ContainsAll(items: TItemArray): Boolean;
Returns True/False if all of the specified items are visible in the interface.
Keep in mind for interfaces that can “contain” an item but it’s currently not visible like the Bank for example, this will return false.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.ContainsAny(['abyssal whip', 'cake']);
end.
Items.FindDifferent¶
function TItemInterface.FindDifferent(items: TItemArray): TIntegerArray;
This one may be a little bit confusing but it returns the indices of all slots
that have items that are not any of the specified items.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.FindDifferent(['abyssal whip', 'cake']);
end.
Items.ContainsDifferent¶
function TItemInterface.ContainsDifferent(items: TItemArray): Boolean;
Similar to Items.FindDifferent but returns a boolean if any slots have
items that are not any of the specified items.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.ContainsDifferent(['abyssal whip', 'cake']);
end.
Item recognize methods¶
The following methods are what we call “Recognize” methods.
They work by screenshotting each slot of the interface, cleaning it’s background and
hashing the result. With the resulting hash the ItemFinder.Database is queried for a
known match.
This is very fast, the downside in comparison to a Finding method is that you can
get multiple items recognized per slot.
There’s several items in game that share the same exact sprite and there’s no way to know
just from the image exactly what an item is.
For example, if you have bones in your inventory, you will get back:
sheep bones (3), sheep bones (2), sheep bones (1), human bones, sheep bones (4), bones, alan's bones, bat bones, small ninja monkey bones, small zombie monkey bones, medium ninja monkey bones, monkey bones
Because all those items share the same image as bones.
For this reason, these methods return TItemArrays and it’s up to you to deduce what
which item of the returned ones is the correct one.
Another thing important to note, is that for consistency reasons, the top 9 pixels of the images are ignored. This is because when an item is stackable you need to wipe those pixels and because stackable items whose you have just 1 don’t have a stack number, the only consistent way to do this is to always ignore those top pixels for every item.
The result of this is that certain items where the result should be obvious, it’s not for WaspLib, e.g. if you have any spear, because their tip is on the top 9 pixels and it gets ignored, whatever spear you have will always return all spears as a match:
rune spear(p), adamant spear(p), mithril spear(p), bronze spear, iron spear, bronze spear(p), steel spear, adamant spear, steel spear(p), iron spear(p), mithril spear, rune spear, adamant spear(kp), rune spear(kp), mithril spear(kp), iron spear(kp), steel spear(kp), bronze spear(kp), black spear, black spear(kp), black spear(p), rune spear(p++), adamant spear(p++), black spear(p++), black spear(p+), mithril spear(p++), bronze spear(p++), rune spear(p+), steel spear(p++), iron spear(p++), adamant spear(p+), iron spear(p+), bronze spear(p+), mithril spear(p+), steel spear(p+)
Same applies to most arrows, most bolts, most elemental staves and any item that only has a difference on the top 9 pixels.
Items._GetShadowHash¶
function TItemInterface._GetShadowHash(slot: Integer): String;
Mostly used for debugging, has no real other use currently. In a nutshell, extracts the shadow of an item in the specified slot and returns the hash of that shadow.
Items._GetHash¶
function TItemInterface._GetHash(slot: Integer): String;
function TItemInterface._GetHash(img: TImage): String; overload;
Internal method to get an hash of an item in a slot.
Items._Recognize¶
function TItemInterface._Recognize(slot: Integer): TItemArray;
function TItemInterface._Recognize(img: TImage): TItemArray; overload;
Internal method to get an a TItemArray of the possible items in the given slot.
Items.Recognize¶
function TItemInterface.Recognize(slot: Integer): TItemArray;
Attempts to recognize an item in the given slot and returns a TItemArray of possible
results.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.Recognize(0);
end.
Assuming you have coins in the first slot of your inventory like this:
You should see something like this printed:
[coins]
Otherwise you should see a list of possible items for the item you have in that slot if any.
Items.RecognizeAllEx¶
function TItemInterface.RecognizeAllEx(): array of TItemArray;
Attempts to recognize all items the inventory and returns and array of TItemArray.
Each index of the outter array is the represents the slot number.
Example:
{$I WaspLib/main.simba}
var
items: TItemArray;
begin
for items in Inventory.Items.RecognizeAllEx() do
WriteLn items;
end.
Assuming your inventory looks like this:
You should get this printed:
[coins]
[steel axe]
[rune spear(p), adamant spear(p), mithril spear(p), bronze spear, iron spear, bronze spear(p), steel spear, adamant spear, steel spear(p), iron spear(p), mithril spear, rune spear, adamant spear(kp), rune spear(kp), mithril spear(kp), iron spear(kp), steel spear(kp), bronze spear(kp), black spear, black spear(kp), black spear(p), rune spear(p++), adamant spear(p++), black spear(p++), black spear(p+), mithril spear(p++), bronze spear(p++), rune spear(p+), steel spear(p++), iron spear(p++), adamant spear(p+), iron spear(p+), bronze spear(p+), mithril spear(p+), steel spear(p+)]
[sheep bones (3), sheep bones (2), sheep bones (1), human bones, sheep bones (4), bones, alan's bones, bat bones, small ninja monkey bones, small zombie monkey bones, medium ninja monkey bones, monkey bones]
[angler hat]
[angler top]
[angler boots]
[angler waders]
[sheep bones (3), sheep bones (2), sheep bones (1), human bones, sheep bones (4), bones, alan's bones, bat bones, small ninja monkey bones, small zombie monkey bones, medium ninja monkey bones, monkey bones]
[]
[spice, gnome spice]
[]
[]
[]
[water rune (nz), board game piece, water rune]
[]
[yommi tree seeds, mithril seeds]
[]
[]
[pet kitten]
[]
[limestone]
[fire rune (nz), fire rune, board game piece]
[]
[]
[charcoal]
[damaged armour]
[hammer]
Otherwise you should see a list of possible items for the item you have in that slot if any.
Items.RecognizeAll¶
function TItemInterface.RecognizeAll(): TItemArray;
Attempts to recognize all items the inventory and returns them as a TItemArray.
This is essentially the same as Items.RecognizeAllEx but with a “flatted” out result.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.RecognizeAll();
end.
Assuming your inventory looks like this:
You should get this printed:
[coins, steel axe, rune spear(p), sheep bones (3), angler hat, angler top, angler boots, angler waders, sheep bones (3), spice, water rune (nz), yommi tree seeds, pet kitten, limestone, fire rune (nz), charcoal, damaged armour, hammer]
Otherwise you should see a list of possible items for the item you have in that slot if any.
Items.Count¶
function TItemInterface.Count(items: TItemArray): Integer;
function TItemInterface.Count(item: TItem): Integer; overload;
Returns the amount of items or item that are/is visible in the interface.
Keep in mind for interfaces that can “contain” the item but it’s currently not visible like the Bank for example, this will not count those.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.Count(['abyssal whip', 'cake']);
end.
Items.WaitCount¶
function TItemInterface.WaitCount(items: TItemArray; count: Integer; time: Integer = 600; interval: Integer = -1): Boolean;
function TItemInterface.WaitCount(item: TItem; count: Integer; time: Integer = 600; interval: Integer = -1): Boolean; overload;
Waits time milliseconds for Items.Count to return the specified count
for the specified items or item.
Keep in mind, like similar functions mentioned in this page, for interfaces that can “contain” the item but it’s currently not visible like the Bank for example, this will not count those.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.WaitCount(['abyssal whip', 'cake'], 10, 600);
end.
Items.ReadStack¶
function TItemInterface.ReadStack(item: TItem): Integer;
Reads the stack of the specified item if it’s visible on the interface.
Keep in mind, like similar functions mentioned in this page, for interfaces that can “contain” the item but it’s currently not visible like the Bank for example, this will not read those.
If the item if not found -1 is returned.
If 0 is returned it means that the item was found but has no stack number.
This is important to keep in mind because in most interfaces, even if an item is stackable, if there’s only a quantity of 1 available, it won’t have a stack number.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.ReadStack('coins');
end.
Items.CountEx¶
function TItemInterface.CountEx(item: TItem): Integer;
Special counting method that will an item regardless of it being stackable or not.
To put it simply, if the item is stackable it will read it’s stack count, otherwise, it will return how many you have in the interface, currently visible.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.CountEx('coins');
end.
Items.Hover¶
function TItemInterface.Hover(item: TItem): Boolean;
Hover the specified item with the mouse.
If the item is not visible, nothing happens and this returns False.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.Hover('cake');
end.
Items.Click¶
function TItemInterface.Click(item: TItem; button: EMouseButton = EMouseButton.LEFT): Boolean;
Clicks the specified item with the specified button.
If the item is not visible, nothing happens and this returns False.
Example:
{$I WaspLib/main.simba}
begin
WriteLn Inventory.Items.Click('cake');
end.
Items.Move¶
function TItemInterface.Move(item: TItem; destination: Integer): Boolean; overload;
function TItemInterface.Interact(slot: Integer; option: String = ''): Boolean; overload;
If the specified item is visible, move it to slot destination.
If it’s not visible this returns False and nothing happens.
Example:
{$I WaspLib/main.simba}
begin
Inventory.Items.Move('cake', 6);
end.
Items.Interact¶
function TItemInterface.Interact(item: TItem; option: String = ''): Boolean;
Interacts with item if it is visible with the specified option.
If item is not visible this returns False and nothing happens.
If option is empty or if option is the default UpText for the item
this will simply left click it.
Example:
{$I WaspLib/main.simba}
begin
Inventory.Items.Interact('Prayer potion(3)', 'Drop');
end.
